Diagnosis and Testing

From Eaglepedia
Jump to: navigation, search

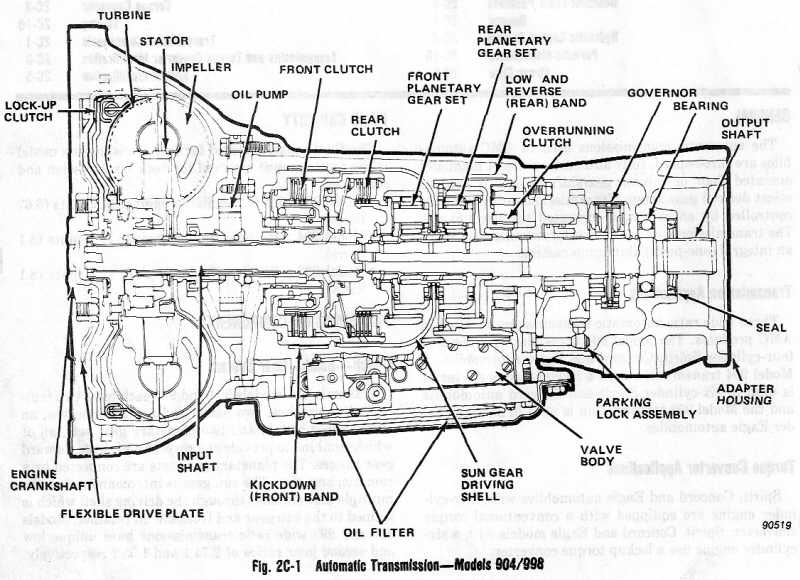

904/998 Transmission Diagram - Eagle Version

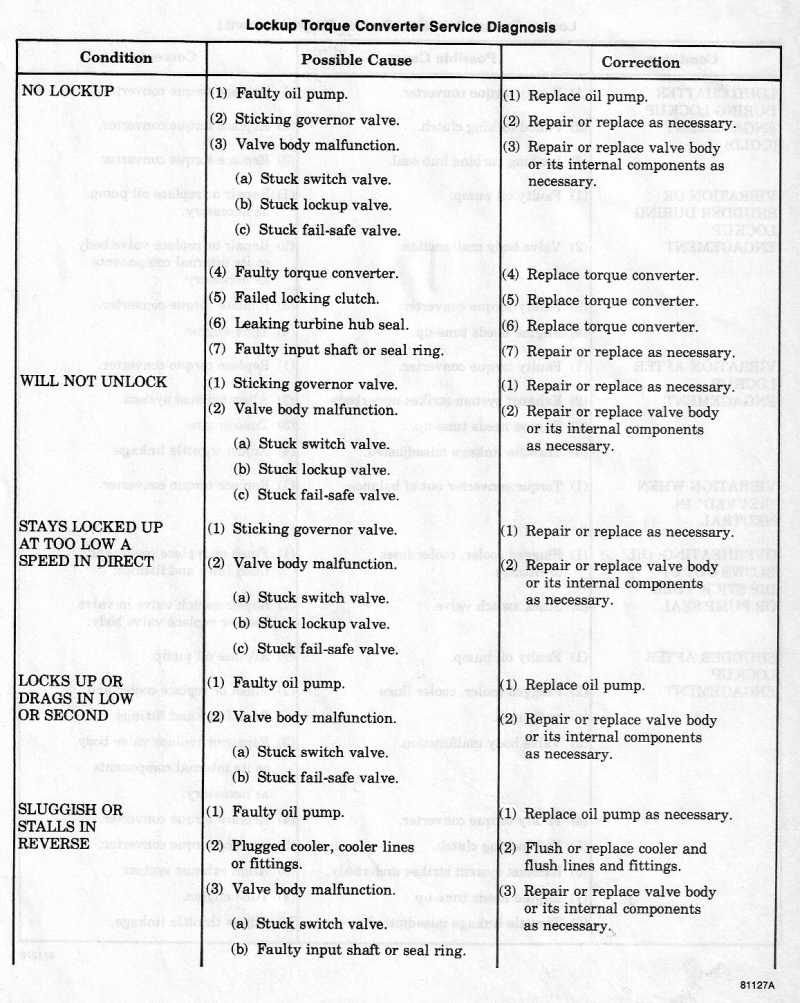

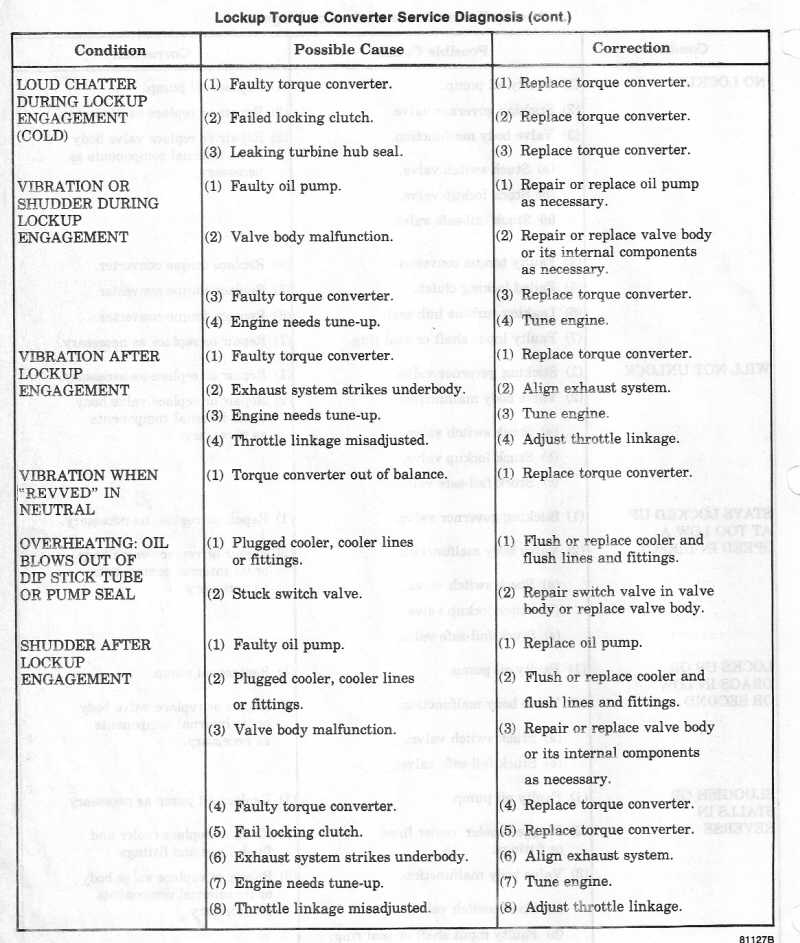

Lock Up Torque Converter Service Diagnosis

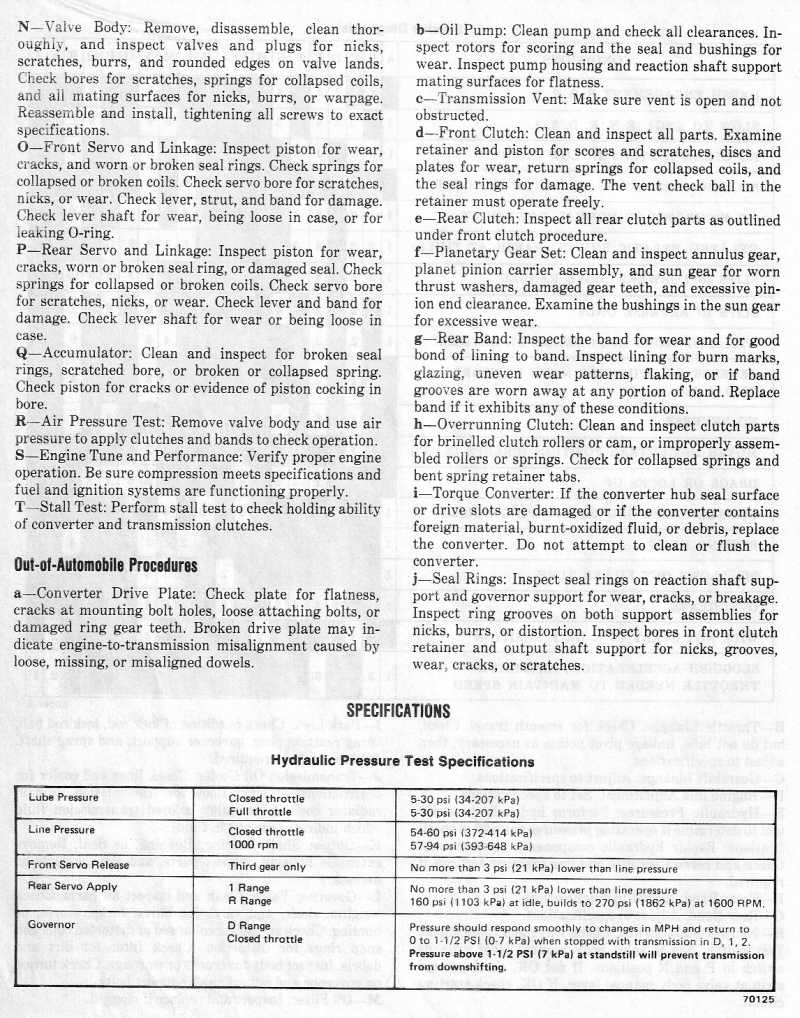

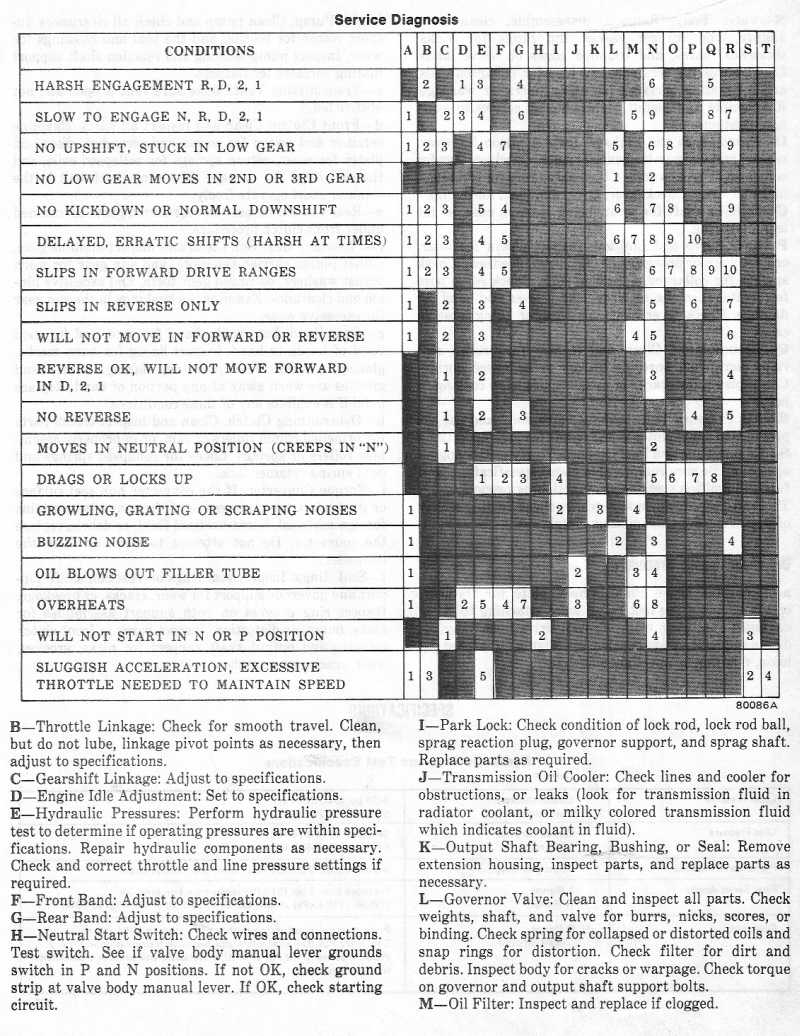

Transmission Diagnosis -- In and Out of Car
